Release notes - i2 TextChart 10.1.1
A high level overview of the release, listing new features and system requirements.
Important notices
None
Features
Release highlights
The following new and updated features are available in this release:
TextChart Standard and Premium 10.1.1
Compatibility
Compatibility updates for Analysts's Notebook 10.1.1 plug-in.
TextChart with Analyst's Notebook subscription
- The subscription version of i2 Analyst's Notebook now includes a subscription to TextChart Standard as part of the package.

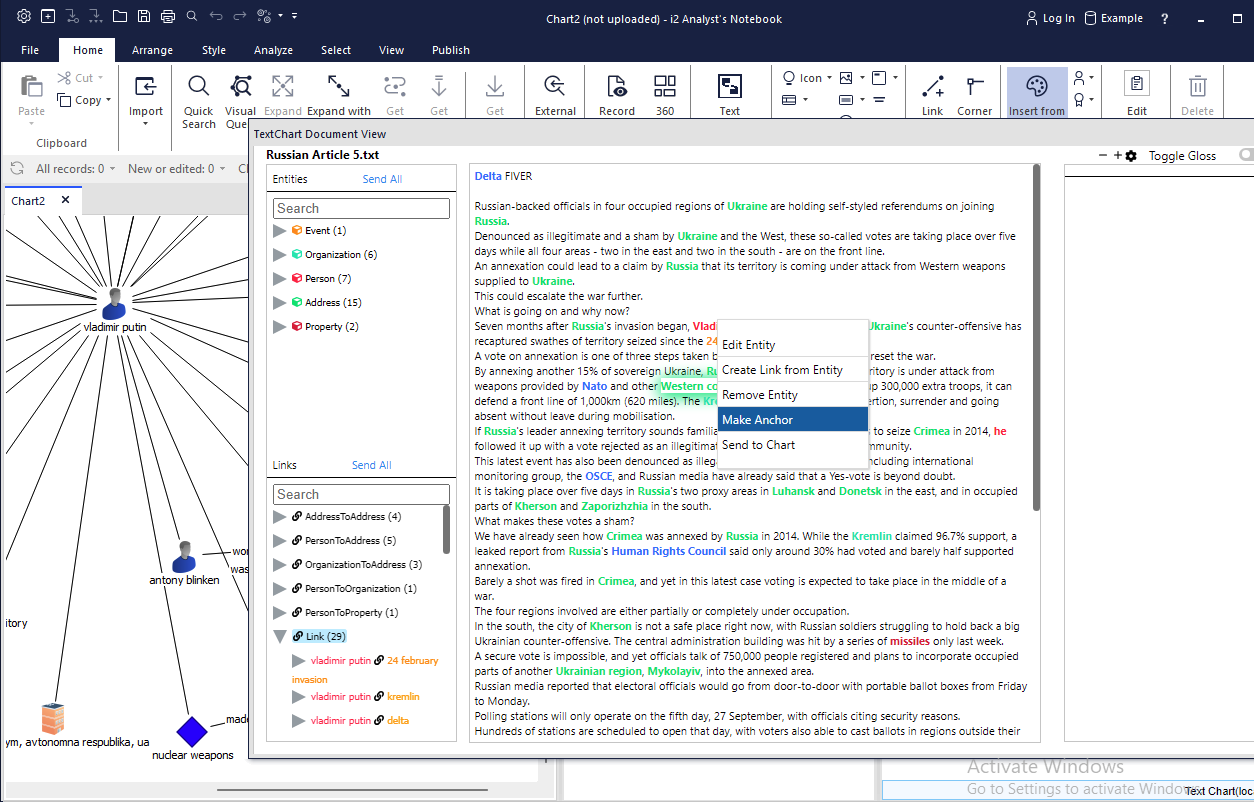

Anchor Entity Generation
- An entity on the document can be marked as an 'Anchor', linking it to all other entities in a given document.
- More than one entity can be made an anchor.
Charting Mode for Items or Records
- Charting mode preference can be set for sending entities and links to the chart, either as items or records via the TextChart ribbon menu.
Persistent Manual Tagging
- TextChart has been updated to prevent erasure of manually tagged entities and links upon the document reprocessing.

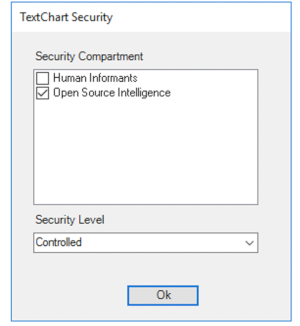

Security Dimension Support (Premium) For Documents and Entities
- Integration with security dimensions in i2 Analysis for document processing, searching and retrieval has been added for TextChart Premium. When enabled in TextChart Premium, this feature associates a document and its entities with the selected security dimensions as configured in i2 Analyze. This provides least privileged access for users in data retrieval.
Download information
Customers who have entitlement can request copies of i2 products.
For more information, see Where can I download the latest i2 products?
System requirements
The following tables shows the system requirements for this release. These system requirements should be used to ensure that the setup you are running is fully supported. Ensure that existing deployments are upgraded to currently supported versions of all the software required.
🆕 = Newly supported ✅ = Supported ❌ = No longer supported
Operating systems - Rosoka (Text Chart) Manager, Worker Node, Studio
| OPERATING SYSTEMS | Rosoka (Text Chart) Manager, Worker Node, Studio |
|---|---|
| Windows | ✅ |
| Linux | ✅ |
| IOS | ✅ |
Operating systems - Text Chart Standard and Text Chart Premium
| OPERATING SYSTEMS | Text Chart 10.1.1 ANB Plugin |
|---|---|
| Microsoft Windows 11 Enterprise x64 (64-bit) | ✅ |
| Microsoft Windows 11 Pro x64 (64-bit) | ✅ |
| Microsoft Windows 10 Enterprise x64 (64-bit) | ✅ |
| Microsoft Windows 10 Pro x64 (64-bit) | ✅ |
| Microsoft Windows Server 2022 Datacenter Edition | ✅ |
| Microsoft Windows Server 2022 Standard Edition | ✅ |
| Microsoft Windows Server 2019 Datacenter Edition | ✅ |
| Microsoft Windows Server 2019 Essentials Edition | ✅ |
| Microsoft Windows Server 2019 Standard Edition | ✅ |
| Microsoft Windows Server 2016 Datacenter Edition | ✅ |
| Microsoft Windows Server 2016 Essentials Edition | ✅ |
| Microsoft Windows Server 2016 Standard Edition | ✅ |
Note: i2 products are supported on hardware virtualization environments that run any of the operating systems that are listed in the detailed system requirements. When you run in a virtual environment, any issues that can be replicated by i2 in a supported operating system are addressed by using the standard support policy. Trial editions of i2 Analyst's Notebook cannot be run in virtualized environments.
Prerequisites - Text Chart Premium
| SOFTWARE PREREQUISITES | Rosoka (Text Chart) Worker Node |
|---|---|
| Microsoft SQL Server 2014 and later | ✅ |
Prerequisites - Rosoka (Text Chart) Manager, Worker Node, Studio
| SOFTWARE PREREQUISITES | Rosoka (Text Chart) Manager, Worker Node, Studio |
|---|---|
| Java 1.8 | ✅ |
Supported software - Text Chart Standard and Text Chart Premium
| COMPATIBLE i2 COMPANION PRODUCTS |
|---|
| i2 Analyst's Notebook 10.0.2 |
| i2 Analyst's Notebook 10.1.0 |
| i2 Analyst's Notebook 10.1.1 |
| i2 Analyze 4.4.3 |
| i2 Analyze 4.4.4 |
| i2 Analyze 4.4.5 |
Hardware - Text Chart Standard and Text Chart Premium
| Hardware requirements | Minimum | Recommended |
|---|---|---|
| Disk space | 10GB | 50GB |
| Processor | 4 cores | 8 core (3.02ghz) |
| Memory | 16GB | 32GB |
| Display | 1280 x 768 | 1920 x 1080 |
Hardware - Rosoka (TextChart) Manager
| Hardware requirements | Minimum | Recommended |
|---|---|---|
| Disk space | 30GB | - |
| Processor | 4 cores | 8 core (3.02ghz) |
| Memory | 16GB | 32GB |
| Network | 10gbe NIC Per Node | - |
Note: Storage determines available queue size.
Hardware - Rosoka (TextChart) Worker Node
| Hardware requirements | Minimum | Recommended |
|---|---|---|
| Disk space | 20GB | - |
| Processor | 4 cores | 8 core (3.02ghz) |
| Memory | 16GB | 32GB |
| Network | 10gbe NIC Per Node | - |
Hardware - TextChart Studio
| Hardware requirements | Minimum | Recommended |
|---|---|---|
| Disk space | 10GB | - |
| Processor | 4 cores | 8 core (3.02ghz) |
| Memory | 16GB | 32GB |
Language support
i2 products are tested on a number of various regional variations of operating systems. In addition they are translated into a number of different languages.
Languages supported for Extraction
| Language | |||
|---|---|---|---|
| Afrikaans | French | Malay | Tagalog |
| Albanian | Galician | Malayalam | Tajik |
| Amharic | Georgian | Maltese | Tamil |
| Arabic | German | Marathi | Telugu |
| Arabizi | Greek | Mongolian | Thai |
| Armenian | Gujarati | Myanmar (burmese) | Tibetan |
| Azerbaijani | Haitian Creole | Nepali | Turkish |
| Bambara | Hausa | Newari | Ukrainian |
| Basque | Hawaiian | Norwegian | Urdu |
| Belarusian | Hebrew | Pashto | Uyghur |
| Bengali | Hindi | Polish | Uzbek |
| Bhojpuri | Hungarian | Portuguese | Vietnamese |
| Bosnian | Icelandic | Punjabi | Welsh |
| Bulgarian | Indonesian | Romanian | Xhosa |
| Catalan | Irish | Romansh | Yiddish |
| Chechen | Italian | Russian | Zulu |
| Chinese Simplified | Japanese | Samoan | |
| Chinese Traditional | Javanese | Serbian | |
| Croatian | Kannada | Sesotho | |
| Czech | Kazakh | Shona | |
| Danish | Khmer | Sindhi | |
| Dari | Korean | Sinhala | |
| Duployan | Kurdi | Slovak | |
| Dutch | Kurdish | Slovenian | |
| English | Kyrgyz | Sogdian | |
| Esperanto | Lao | Somali | |
| Estonian | Latvian | Spanish | |
| Farsi | Lithuanian | Sundanese | |
| Filipino | Luxembourgish | Swahili | |
| Finnish | Macedonian | Swedish |
User Interface Translations
The following languages are supported:
| Translations | Text Chart 10.1.1 |
|---|---|
| English | ✅ |
