Release notes - Analysis Studio Apr.2025.2
A high level overview of the release, listing new features, the system requirements, and any known issues.
Important notices
⚠️ Installation - i2 Analyst's Notebook (ANB) desktop client
After downloading the distribution media for ANB ensure that you extract all of the product components from the compressed file. This can be done using the "Extract All..." option on the Windows right-click menu.
Then using Windows Explorer, browse to the root of the extracted folder and run setup.exe and follow the installation prompts.
⚠️ i2 iBridge
iBridge (all versions) will not interoperate with the Analyst's Notebook 10.1.0 desktop client. iBridge customers are advised to continue to use the latest 32-bit Analyst's Notebook Premium version compatible with their version of iBridge.
Features
Release highlights
The following new and updated features are available in this release:
| Analyst's Notebook client (ANB) |
|---|
| Updated user interface |
| High quality attribute symbols |
| Improved Icon selector |
| Custom type seeded searches |
| Custom type sharing |
| Web client |
|---|
| Chart item importer |
| General Chart Improvements |
| i2 Analyze server |
|---|
| Export group membership from admin UI |
Release highlight details - Analyst's Notebook 10.1.0

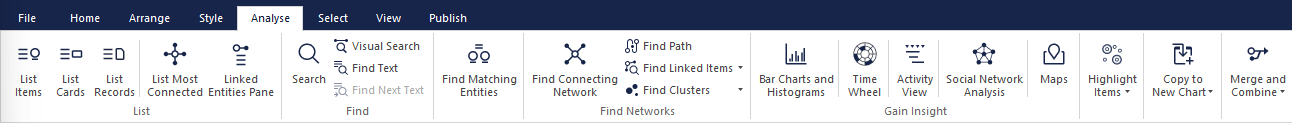

Updated user interface
The user interface has been refreshed with an updated ribbon toolbar and a new color scheme.

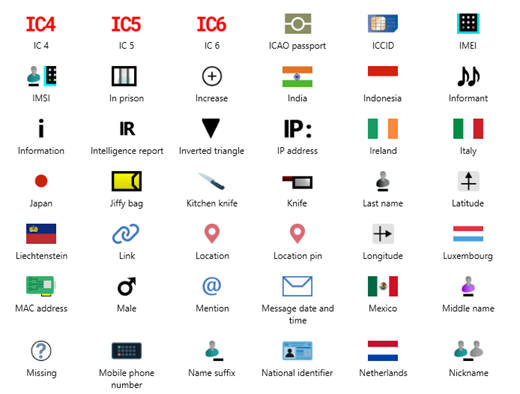

High quality attribute symbols
Attribute symbols have been upgraded with high quality images and additional new symbols.
Improved Icon selector
A new icon picker is available for chart and attribute icons, grouped by category for easier selection. Users can also search for icons by providing a search term.
The Style toolbar has a new Set Display Icon tool providing direct access to the icon picker for items selected on a chart.
Custom type seeded searches
- When Analyst's Notebook is used with a connection to i2 Analyze, custom item types can be used to provide search parameters (seeds) when searching an external data source.
Custom type sharing
- Custom item types from i2 Analyze data are now shared with the Share Records feature, previously only items in the defined schema could be shared.
Release highlight details - Analyst's Notebook and web client
No changes
Release highlight details - Web client
Chart item importer
- Support for importing .xlsx file types has been included to enhance compatibility with Excel spreadsheets.
General Chart Improvements
Support for summarizing multiple links between two entities on a web chart with a single link, including the ability for users to modify its label
Support for printing maps directly from the Analyst's Notebook web client
Support for downloading web chart contents in Microsoft Excel format
Support for custom item and property types to the web client
Options for changing the appearance of charts in the web client
Improves the user experience around editing Visual Queries and import specifications
Release highlight details - i2 Analyze 4.4.5

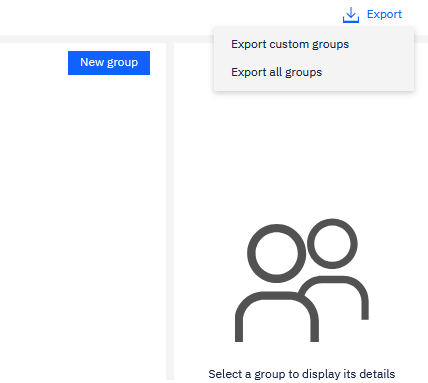

Export group membership from admin UI
Group membership configuration can be exported from the admin UI so that it can be used to configure a new i2 Analyze deployment.
Integrated product versions
| Product included | Version |
|---|---|
| i2 Analyst's Notebook | 10.1.0 |
| i2 Analyze | 4.4.5 |
| Connector Designer1 | 1.1.0 |
| Open Liberty 25 | 25.0.0.2 |
| Eclipse Temurin JDK 17 | 17.0.14 |
1 The Connector Designer and deployment guidance are available at https://docs.i2group.com/as/as-connector-designer.html.
Upgrading
To ensure compatibility, i2 recommends that the i2 Analyst's Notebook desktop client and i2 Analyze server are upgraded to the latest versions at the same time.
i2 do not support mixed version deployments, but to assist with larger deployment upgrades it is possible to use the i2 Analyst's Notebook desktop client or an i2 Analyze server from a previous version with the corresponding latest versions in this release, however some functionality might not be available in these configurations. Mixed version deployments should be aligned as quickly as possible to ensure product support.
Contact i2 Support to understand which versions can be used together in the short term for an unsupported mixed version deployment.
Version by Version comparison
The following table shows a comparison of features between recent versions of Analysis Studio:
🆕 = New Feature ✅ = Existing Feature ❌ = Feature Removed/Obsolete
| FEATURES - i2 Analyze and clients (ANB & web client) | Analysis Studio Apr.2025.2 | Analysis Studio Aug.2024 | Analysis Studio Nov.2023 | Analysis Studio Jul.2023 |
|---|---|---|---|---|
| ANB - Updated user interface | 🆕 | - | - | - |
| ANB - High quality attribute symbols | 🆕 | - | - | - |
| ANB - Improved Icon selector | 🆕 | - | - | - |
| ANB - Custom type seeded searches | 🆕 | - | - | - |
| ANB - Custom type sharing | 🆕 | - | - | - |
| Web client - Chart item importer | 🆕 | - | - | - |
| Web client - General Chart Improvements | 🆕 | - | - | - |
| Export group membership from admin UI | 🆕 | - | - | - |
| ANB - Analyst's Notebook single installer | ✅ | 🆕 | - | - |
| ANB - Highlight tool options and animations | ✅ | 🆕 | - | - |
| ANB - Record count badges | ✅ | 🆕 | - | - |
| ANB - Attribute display control | ✅ | 🆕 | - | - |
| ANB - Chart item group naming | ✅ | 🆕 | - | - |
| ANB - Enhanced chart collaboration | ✅ | 🆕 | - | - |
| ANB - Performance improvements - saving/loading & copy/paste | ✅ | 🆕 | - | - |
| ANB & web client - Extended source reference image display | ✅ | 🆕 | - | - |
| Web client - Chart item importer | ✅ | 🆕 | - | - |
| Web client - Chart item palette | ✅ | 🆕 | - | - |
| Web client - Editable chart records | ✅ | 🆕 | - | - |
| Modernized icon set | ✅ | 🆕 | - | - |
| Connector Designer | ✅ | 🆕 | - | - |
| Dynamic connector configuration updates | ✅ | 🆕 | - | - |
| ANBP - Additional new icons | ✅ | ✅ | 🆕 | - |
| ANBP - Performance improvements | ✅ | ✅ | 🆕 | - |
| ANBP - Usability improvements | ✅ | ✅ | 🆕 | - |
| ANBP - Single sign on for i2 Esri Maps | ✅ | ✅ | 🆕 | - |
| ANBP - Support for Esri ArcGIS Enterprise 11 | ✅ | ✅ | 🆕 | - |
| ANBP - Flexible Schemas | ✅ | ✅ | 🆕 | - |
| ANBP - Set default charting scheme | ✅ | ✅ | 🆕 | - |
| ANBP - Auto-add to maps configuration | ✅ | ✅ | 🆕 | - |
| ANBP - Import undo | ✅ | ✅ | 🆕 | - |
| ANBP & web client - Enhanced language support | ✅ | ✅ | 🆕 | - |
| ANBP & web client - Source Reference image display | ✅ | ✅ | 🆕 | - |
| ANBP & web client - Display environment name | ✅ | ✅ | 🆕 | - |
| Web client - Support for system matching rules | ✅ | ✅ | 🆕 | - |
| Web client - Copy and Paste web chart items | ✅ | ✅ | 🆕 | - |
| Web client - Enhanced chart record data | ✅ | ✅ | 🆕 | - |
| SOLR 9 | ✅ | ✅ | 🆕 | - |
| ANBP - 64-bit support | ✅ | ✅ | ✅ | 🆕 |
| ANBP - i2 Online integration | ✅ | ✅ | ✅ | 🆕 |
| ANBP - List Records tool | ✅ | ✅ | ✅ | 🆕 |
| ANBP - Highlight Selection tool | ✅ | ✅ | ✅ | 🆕 |
| ANBP - New selection tools | ✅ | ✅ | ✅ | 🆕 |
| ANBP - Additional icons | ✅ | ✅ | ✅ | 🆕 |
| ANBP - Conditional Formatting - new operators | ✅ | ✅ | ✅ | 🆕 |
| ANBP - Bar Charts and Histograms - additional playback tools | ✅ | ✅ | ✅ | 🆕 |
| ANBP - Activity View - Select Latest/Earliest/All | ✅ | ✅ | ✅ | 🆕 |
| ANBP - Enhanced Time Wheel | ✅ | ✅ | ✅ | 🆕 |
| ANBP - Export to KML | ✅ | ✅ | ✅ | 🆕 |
| ANBP - License Management | ✅ | ✅ | ✅ | 🆕 |
| Web client - Lists | ✅ | ✅ | ✅ | 🆕 |
| Web client - Explore | ✅ | ✅ | ✅ | 🆕 |
| Web client - Export to PDF | ✅ | ✅ | ✅ | 🆕 |
| ANBP & web client - Share Data | ✅ | ✅ | ✅ | 🆕 |
| Dynamic user security | ✅ | ✅ | ✅ | 🆕 |
| FEATURES - External Searches | Analysis Studio Apr.2025.2 | Analysis Studio Aug.2024 | Analysis Studio Nov.2023 | Analysis Studio Jul.2023 |
|---|---|---|---|---|
| Connector Designer | ✅ | 🆕 | - | - |
| Dynamic connector configuration changes | ✅ | 🆕 | - | - |
| Visual Query for external searches | ✅ | ✅ | ✅ | 🆕 |
Fixed and known issues
The issues that have been fixed in this release, and known issues.
Download information
Customers who have entitlement can request copies of i2 products.
For more information, see Where can I download the latest i2 products?
System requirements - Analyst's Notebook (ANB) desktop client
The following tables shows the system requirements for this release, and previous releases. These system requirements should be used to ensure that the setup you are running is fully supported. Ensure that existing deployments are upgraded to currently supported versions of all the software required.
🆕 = Newly supported ✅ = Supported ❌ = No longer supported
Operating systems - ANB desktop client
| OPERATING SYSTEMS | Analyst's Notebook 10.1.0 | Analyst's Notebook 10.0.2 | Analyst's Notebook 10.0.1 | Analyst's Notebook 10.0.0 |
|---|---|---|---|---|
| Microsoft Windows 11 Enterprise x64 (64-bit) | ✅ | ✅ | ✅ | ✅ |
| Microsoft Windows 11 Pro x64 (64-bit) | ✅ | ✅ | ✅ | ✅ |
| Microsoft Windows 10 Enterprise x64 (64-bit) | ✅2 | ✅ | ✅ | ✅ |
| Microsoft Windows 10 Pro x64 (64-bit) | ✅2 | ✅ | ✅ | ✅ |
| Microsoft Windows Server 2022 Datacenter Edition | ✅ | ✅ | ✅ | 🆕 |
| Microsoft Windows Server 2022 Standard Edition | ✅ | ✅ | ✅ | 🆕 |
| Microsoft Windows Server 2019 Datacenter Edition | ✅ | ✅ | ✅ | ✅ |
| Microsoft Windows Server 2019 Essentials Edition | ✅ | ✅ | ✅ | ✅ |
| Microsoft Windows Server 2019 Standard Edition | ✅ | ✅ | ✅ | ✅ |
| Microsoft Windows Server 2016 Datacenter Edition | ✅2 | ✅ | ✅ | ✅ |
| Microsoft Windows Server 2016 Essentials Edition | ✅2 | ✅ | ✅ | ✅ |
| Microsoft Windows Server 2016 Standard Edition | ✅2 | ✅ | ✅ | ✅ |
2 Microsoft Windows 10 Pro and Windows Server 2016 support will be deprecated in a future Analyst's Notebook release.
Note: i2 products are supported on hardware virtualization environments that run any of the operating systems that are listed in the detailed system requirements. When you run in a virtual environment, any issues that can be replicated by i2 in a supported operating system are addressed by using the standard support policy.
Prerequisites - ANB desktop client
| SOFTWARE PREREQUISITES | Analyst's Notebook 10.1.0 | Analyst's Notebook 10.0.2 | Analyst's Notebook 10.0.1 | Analyst's Notebook 10.0.0 |
|---|---|---|---|---|
| Microsoft Edge (latest) or Microsoft Edge WebView2 | ✅ | ✅ | ✅ | 🆕 |
| Microsoft .NET Framework 4.8 | ✅ | ✅ | ✅ | 🆕 |
| Microsoft Access database engine 2016 (64-bit)3 | ✅ | ✅ | ✅ | 🆕 |
Note: Microsoft Edge Webview2 is available from https://developer.microsoft.com/en-us/microsoft-edge/webview2/. It must be installed by choosing the right-click option to "Run as administrator".
3 Importing from an Excel spreadsheet into Analyst's Notebook requires the Microsoft Access database engine 2016 (64-bit) to be installed.
Supported software (optional) - ANB desktop client
| COMPATIBLE i2 COMPANION PRODUCTS |
|---|
| i2 Analyst's Notebook Connector for Esri 10.1.0 |
| i2 TextChart 10.1.0 |
| SUPPORTED SOFTWARE | Analyst's Notebook 10.1.0 | Analyst's Notebook 10.0.2 | Analyst's Notebook 10.0.1 | Analyst's Notebook 10.0.0 |
|---|---|---|---|---|
| Microsoft Office 365 64-bit | ✅ | ✅ | ✅ | 🆕 |
| Microsoft Office 2021 64-bit | ✅ | ✅ | ✅ | 🆕 |
| Microsoft Office 2019 64-bit | ✅4 | ✅ | ✅ | 🆕 |
| Microsoft Office 2016 64-bit | ❌ | ❌ | ✅ | 🆕 |
| Esri ArcGIS Enterprise 11 (Portal for ArcGIS; optional, for i2 Esri Maps)5 | ✅ | ✅ | 🆕 | - |
| Esri ArcGIS Enterprise 10 (Portal for ArcGIS; optional, for i2 Esri Maps)5 | ✅ | ✅ | ✅ | ✅ |
4 Microsoft Office 2019 support will be deprecated in a future Analyst's Notebook release.
5 Specific version support is determined by Esri product lifecycle statement.
Hardware - ANB desktop client
| Hardware requirements | Minimum | Recommended |
|---|---|---|
| Disk space | 1GB for installation plus additional working space | |
| Processor | Intel or AMD processor with 64-bit and SSE 4.2 support | |
| 2GHz or faster | ||
| Memory | 8GB | 16GB |
| Display | 1280 x 768 | 1920 x 1080 |
System requirements - i2 Analyze Server
🆕 = Newly supported ✅ = Supported ❌ = No longer supported
Operating systems - i2 Analyze Server
The following tables shows the system requirements for this release, and previous releases. These system requirements should be used to ensure that the setup you are running is fully supported. Ensure that existing deployments are upgraded to currently supported versions of all the software required.
| OPERATING SYSTEMS | i2 Analyze 4.4.5 | i2 Analyze 4.4.4 | i2 Analyze 4.4.3 | i2 Analyze 4.4.2 |
|---|---|---|---|---|
| Microsoft Windows Server 2022 Datacenter Edition | ✅ | ✅ | ✅ | 🆕 |
| Microsoft Windows Server 2022 Essentials Edition | ✅ | ✅ | ✅ | 🆕 |
| Microsoft Windows Server 2022 Standard Edition | ✅ | ✅ | ✅ | 🆕 |
| Microsoft Windows Server 2019 Datacenter Edition | ✅ | ✅ | ✅ | ✅ |
| Microsoft Windows Server 2019 Essentials Edition | ✅ | ✅ | ✅ | ✅ |
| Microsoft Windows Server 2019 Standard Edition | ✅ | ✅ | ✅ | ✅ |
| Microsoft Windows Server 2016 Datacenter Edition | ✅ 6 | ✅ | ✅ | ✅ |
| Microsoft Windows Server 2016 Essentials Edition | ✅ 6 | ✅ | ✅ | ✅ |
| Microsoft Windows Server 2016 Standard Edition | ✅ 6 | ✅ | ✅ | ✅ |
| Linux Red Hat Enterprise V9 and fix packs7 | ✅ | ✅ | ✅ | 🆕 |
| Linux Red Hat Enterprise V8 and fix packs7 | ✅ | ✅ | ✅ | ✅ |
6 Microsoft Windows Server 2016 support will be deprecated in a future i2 Analyze release.
7 Support for Red Hat Enterprise Linux (RHEL) Server on POWER Systems is restricted to IBM DB2 and SOLR as part of a distributed deployment.
Note: i2 products are supported on hardware virtualization environments that run any of the operating systems that are listed in the detailed system requirements. When you run in a virtual environment, any issues that can be replicated by i2 in a supported operating system are addressed by using the standard support policy.
Installation of Connector Designer requires x64 Linux, Docker Engine and an internet connection. See https://docs.i2group.com/as/as-connector-designer.html for full details.
Installed Software - i2 Analyze Server
| INSTALLED SOFTWARE | i2 Analyze 4.4.5 | i2 Analyze 4.4.4 | i2 Analyze 4.4.3 | i2 Analyze 4.4.2 |
|---|---|---|---|---|
| Open Liberty 25 (25.0.0.2) | 🆕 | - | - | - |
| Open Liberty 24 (24.0.0.4) | ❌ | 🆕 | - | - |
| Open Liberty 23 (23.0.0.9) | ❌ | ❌ | 🆕 | - |
| Open Liberty 23 (23.0.0.5) | ❌ | ❌ | ❌ | 🆕 |
Note: Supplied and installed by the i2 Analyze toolkit.
Supported software - i2 Analyze Server
| SOFTWARE PREREQUISITES | i2 Analyze 4.4.5 | i2 Analyze 4.4.4 | i2 Analyze 4.4.3 | i2 Analyze 4.4.2 |
|---|---|---|---|---|
| PostgreSQL 16 - on Amazon Relational Database Service (RDS) | ✅ | ✅ | 🆕 | - |
| PostgreSQL 16 | ✅ | 🆕 | - | - |
| PostgreSQL 15 - on Amazon Relational Database Service (RDS) | ✅ | ✅ | ✅ | 🆕 |
| PostgreSQL 15 | ✅ | ✅ | ✅ | ✅ |
| IBM DB2 Standard Edition 11.5 | ✅ | ✅ | ✅ | ✅ |
| IBM DB2 Advanced Edition 11.5 | ✅ | ✅ | ✅ | ✅ |
| IBM DB2 11.1 Workgroup, Enterprise, Advanced Workgroup, Advanced Enterprise | ✅ | ✅ | ✅ | ✅ |
| Microsoft SQL Server 2022 | ✅ | ✅ | ✅ | 🆕 |
| Microsoft SQL Server 2019 | ✅ | ✅ | ✅ | ✅ |
| Microsoft SQL Server 2017 | ❌ | ✅ | ✅ | ✅ |
Hardware - i2 Analyze Server
| Hardware Requirements | Minimum |
|---|---|
| Disk space | 4GB |
| Processor | 2 GHz x86-64 dual-core |
| Memory (Application server) | 16GB |
| Memory (JVM) | 8GB |
Note: The minimum hardware specifications specified in the table will allow customers to install and deploy i2 Analyze on a single machine using the example deployment shipped with the on-prem toolkit. Hardware specs for an optimal i2 Analyze deployment are dependant on the expected amount of data to be loaded and user usage.
Supported Browsers - Web client
| Supported Web Browsers |
|---|
| Google Chrome (latest version) |
| Microsoft Edge (latest version) |
| Mozilla Firefox (latest version) |
| Mozilla Firefox ESR (latest version) |
Language support
i2 products are tested on a number of various regional variations of operating systems. In addition they are translated into a number of different languages.
Operating system language support
i2 supports this product on the following regional versions of the supported operating systems:
| Language Group/Language | Language Collection | Support Status |
|---|---|---|
| Western Europe and USA | Basic | ✅ |
| Central Europe | Basic | ✅ |
| Baltic | Basic | ✅ |
| Cyrillic | Basic | ✅ |
| Turkic | Basic | ✅ |
| Arabic | Complex Script | ✅ |
| Japanese | East Asian | ✅ |
| Korean | East Asian | ✅ |
| Traditional Chinese | East Asian | ✅ |
| Simplified Chinese | East Asian | ✅ |
| Thai | Complex Script | ❌ |
| Vietnamese | Complex Script | ❌ |
| Greek | Basic | ❌ |
| Hebrew | Complex Script | ❌ |
| Indic | Complex Script | ❌ |
| Georgian | Complex Script | ❌ |
| Armenian | Complex Script | ❌ |
| Dhivehi | Complex Script | ❌ |
| Galician | Complex Script | ❌ |
| Gujarati | Complex Script | ❌ |
| Kannada | Complex Script | ❌ |
| Kyrgyz | Complex Script | ❌ |
| Mongolian (Cyrillic) | Complex Script | ❌ |
| Punjabi | Complex Script | ❌ |
| Syriac | Complex Script | ❌ |
| Telugu | Complex Script | ❌ |
Data support
i2 products support unicode data.
Translations
The following languages are supported:
| Translations | Analysis Studio Apr.2025 |
|---|---|
| Arabic | ✅ |
| Brazilian Portuguese | ✅ |
| Bulgarian8 | ✅ |
| Czech | ✅ |
| English | ✅ |
| French | ✅ |
| German | ✅ |
| Hungarian9 | ✅ |
| Italian | ✅ |
| Japanese | ✅ |
| Korean | ✅ |
| Polish | ✅ |
| Russian8 | ✅ |
| Simplified Chinese | ✅ |
| Slovak9 | ✅ |
| Spanish | ✅ |
| Traditional Chinese | ✅ |
| Turkish | ✅ |
| Ukrainian8 | ✅ |
8 Help available in English only.
9 The External Searches capability and chart store are not translated for these languages.
