Release notes - i2 Analyst's Notebook 10.1.1

This document provides an overview of the new features, system requirements, and known issues for i2 Analyst's Notebook 10.1.1.

Important notices

⚠️ Certificate signing authority

We have updated the certificate signing authority since Analyst's Notebook 10.1.0. If your systems restrict which certificate authorities are trusted, you will need to update your systems to recognize the new authority.

⚠️ Installation

To install the product, extract all components from the compressed file using the Extract All... option in the Windows right-click menu. Navigate to the root of the extracted folder and run setup.exe, then follow the installation prompts.

⚠️ i2 iBridge

i2 iBridge (all versions) is not compatible with Analyst's Notebook 10.1.1. Users should continue using the latest 32-bit version of Analyst's Notebook that is compatible with their version of iBridge.

Features

Release highlights

The following new and updated features are available in this release:


Analyst's Notebook
New icons
Filtered search for types and attributes
New selection options
Improved snapshot control
Improved link corner behavior

Release highlight details

New Icons

70 new icons have been to address contemporary issues. The standard template similarly been augmented with new entity types using the additional icons.

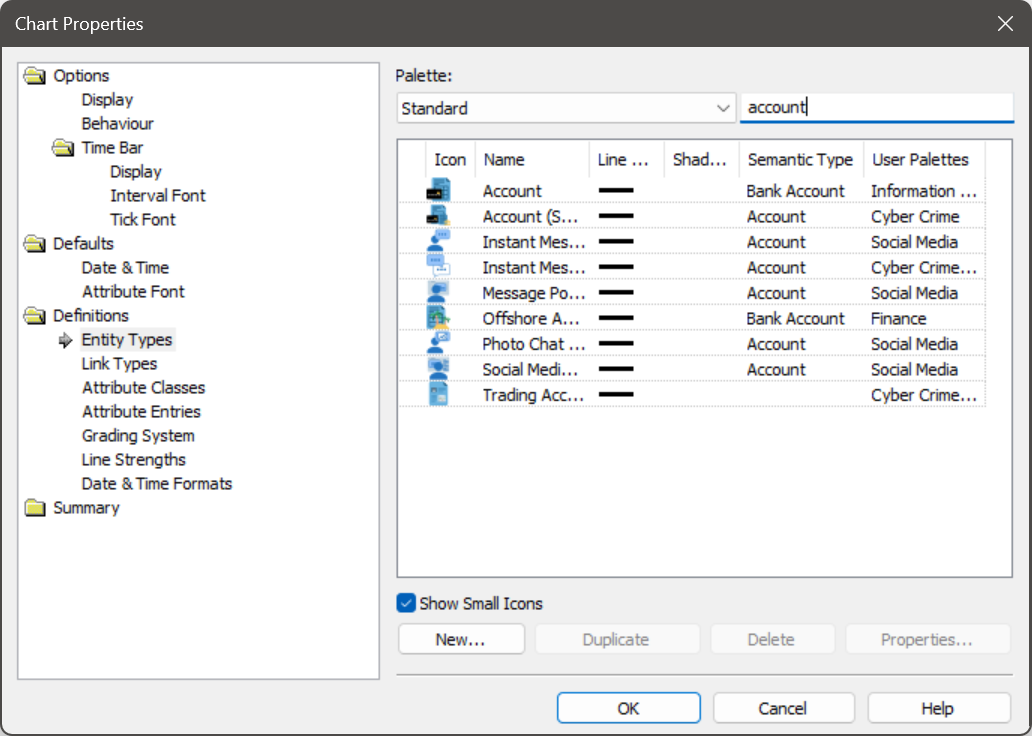

Filtered search for types and attributes

Within the Chart Properties dialog you are now able to search through lists of entity and link types as well as attribute classes and entries to simplify finding the item of interest in long lists.

New selection options

Additional selection options can be found in the Selection ribbon menu that apply when executing any of the selection command. They allow:
- Automatically fitting the window to the selection.
- Include hidden item and show on selection.
- Control the display of corner handles for selected links.

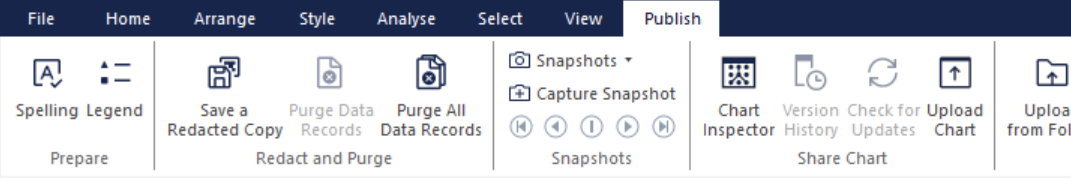

Improved snapshot handling

Within the Publish ribbon menu the creation and access to snapshots has been improved allow the user to:
- Quickly create a new snapshot via a single click.
- Controls to move to the next or previous snapshot in the sequence.
- Controls to move to the first or last snapshot in the sequence.

Improved link corner behavior

Corners on links in charts will only display their control handles when the link is either hovered over or selected to reduce clutter on the chart.

Version by Version comparison

The following table shows a comparison of features between recent versions of Analyst's Notebook:

🆕 = New Feature ✅ = Existing Feature ❌ = Feature Removed/Obsolete


FEATURES	Analyst's Notebook 10.1.1	Analyst's Notebook 10.1.0	Analyst's Notebook 10.0.2	Analyst's Notebook 10.0.1	Analyst's Notebook 10.0.0	Analyst's Notebook 9.4.0¹
New icons	🆕	-	-	-	-	-
Filtered search for types and attributes	🆕	-	-	-	-	-
New selection options	🆕	-	-	-	-	-
Improved snapshot handling	🆕	-	-	-	-	-
Improved link corner behavior	🆕	-	-	-	-	-
High quality attribute symbols	✅	🆕	-	-	-	-
Improved Icon selector	✅	🆕	-	-	-	-
Analyst's Notebook single installer	✅	✅	🆕	-	-	-
Modernized icon set	✅	✅	🆕	-	-	-
Highlight tool options and animations	✅	✅	🆕	-	-	-
Record count badges	✅	✅	🆕	-	-	-
Attribute display control	✅	✅	🆕	-	-	-
Chart item group naming	✅	✅	🆕	-	-	-
Enhanced chart collaboration	✅	✅	🆕	-	-	-
Performance improvements - saving/loading & copy/paste	✅	✅	🆕	-	-	-
Additional new icons	✅	✅	✅	🆕	-	-
Enhanced language support	✅	✅	✅	🆕	-	-
Performance improvements - analysis tools	✅	✅	✅	🆕	-	-
Single sign on for i2 Esri Maps	✅	✅	✅	🆕	-	-
Support for Esri ArcGIS Enterprise 11	✅	✅	✅	🆕	-	-
64-bit support	✅	✅	✅	✅	🆕	-
List Records tool	✅	✅	✅	✅	🆕	-
Highlight Selection tool	✅	✅	✅	✅	🆕	-
New selection tools	✅	✅	✅	✅	🆕	-
Additional icons	✅	✅	✅	✅	🆕	-
Conditional Formatting - new operators	✅	✅	✅	✅	🆕	-
Importing - Date/Time format key	✅	✅	✅	✅	🆕	-
Bar Charts and Histograms - additional playback tools	✅	✅	✅	✅	🆕	-
Activity View - Select Latest/Earliest/All	✅	✅	✅	✅	🆕	-
Enhanced Time Wheel	✅	✅	✅	✅	🆕	-
Export to KML	✅	✅	✅	✅	🆕	-
License Management	✅	✅	✅	✅	🆕	-
i2 Branding	✅	✅	✅	✅	✅	🆕
Time Wheel	✅	✅	✅	✅	✅	🆕

¹ Analyst's Notebook 9.4.0 support will be deprecated at the end of 2025.

Fixed and known issues

The issues that have been fixed in this release, and known issues.

List of fixed issues

List of known issues

Download information

Customers who have entitlement can request copies of i2 products.

For more information, see Where can I download the latest i2 products?

System requirements

The following tables shows the system requirements for this release, and previous releases. These system requirements should be used to ensure that the setup you are running is fully supported. Ensure that existing deployments are upgraded to currently supported versions of all the software required.

Note: Our product compatibility strategy focuses on validating our products across multiple supported Windows environments to ensure consistent performance and reliability. We do not cover in-place OS upgrades because the potential complexity makes firm statements of support impractical. We recommend customers validate their specific configuration before proceeding.

🆕 = Newly supported ✅ = Supported ❌ = No longer supported

Operating systems


OPERATING SYSTEMS	Analyst's Notebook 10.1.1	Analyst's Notebook 10.1.0	Analyst's Notebook 10.0.2	Analyst's Notebook 10.0.1	Analyst's Notebook 10.0.0	Analyst's Notebook 9.4.0
Microsoft Windows 11 Enterprise x64 (64-bit)	✅	✅	✅	✅	✅	🆕
Microsoft Windows 11 Pro x64 (64-bit)	✅	✅	✅	✅	✅	🆕
Microsoft Windows 10 Enterprise x64 (64-bit)	✅²	✅	✅	✅	✅	✅
Microsoft Windows 10 Pro x64 (64-bit)	✅²	✅	✅	✅	✅	✅
Microsoft Windows 10 Enterprise x32 (32-bit)	❌	❌	❌	❌	❌	✅
Microsoft Windows 10 Pro x32 (32-bit)	❌	❌	❌	❌	❌	✅
Microsoft Windows Server 2025	-³	✅	✅	✅	🆕	-
Microsoft Windows Server 23H2	-³	✅	✅	✅	🆕	-
Microsoft Windows Server 2022 Datacenter Edition	✅	✅	✅	✅	🆕	-
Microsoft Windows Server 2022 Standard Edition	✅	✅	✅	✅	🆕	-
Microsoft Windows Server 2019 Datacenter Edition	✅⁴	✅	✅	✅	✅	✅
Microsoft Windows Server 2019 Essentials Edition	✅⁴	✅	✅	✅	✅	✅
Microsoft Windows Server 2019 Standard Edition	✅⁴	✅	✅	✅	✅	✅
Microsoft Windows Server 2016 Datacenter Edition	✅⁴	✅	✅	✅	✅	✅
Microsoft Windows Server 2016 Essentials Edition	✅⁴	✅	✅	✅	✅	✅
Microsoft Windows Server 2016 Standard Edition	✅⁴	✅	✅	✅	✅	✅
Microsoft Windows Server 2012 R2 Datacenter Edition	❌	❌	❌	❌	❌	✅
Microsoft Windows Server 2012 R2 Essentials Edition	❌	❌	❌	❌	❌	✅
Microsoft Windows Server 2012 R2 Standard Edition	❌	❌	❌	❌	❌	✅

² Windows 10 support will be deprecated in a future Analyst's Notebook release.

³ Has not been formally tested for compatibility.

⁴ Windows Server 2016 and 2019 support will be deprecated in a future Analyst's Notebook release.

Note: i2 products are supported on hardware virtualization environments that run any of the operating systems that are listed in the detailed system requirements. When you run in a virtual environment, any issues that can be replicated by i2 in a supported operating system are addressed by using the standard support policy. Trial editions of i2 Analyst's Notebook cannot be run in virtualized environments.

Prerequisites


SOFTWARE PREREQUISITES	Analyst's Notebook 10.1.1	Analyst's Notebook 10.1.0	Analyst's Notebook 10.0.2	Analyst's Notebook 10.0.1	Analyst's Notebook 10.0.0	Analyst's Notebook 9.4.0
Microsoft Edge (latest) or Microsoft Edge WebView2	✅	✅	✅	✅	🆕	-
Microsoft .NET Framework 4.8	✅	✅	✅	✅	🆕	-
Microsoft .NET Framework 4.7.2	❌	❌	❌	❌	❌	✅
Microsoft .NET Framework 3.5 SP1	❌	❌	❌	❌	❌	✅
Microsoft Access database engine 2016 (64-bit)⁵	✅	✅	✅	✅	🆕	-
Microsoft Access database engine 2010 (32-bit)	❌	❌	❌	❌	❌	✅

Note: Microsoft Edge Webview2 is available from https://developer.microsoft.com/en-us/microsoft-edge/webview2/. It must be installed by choosing the right-click option to "Run as administrator".

⁵ Importing from an Excel spreadsheet into Analyst's Notebook requires the Microsoft Access database engine 2016 (64-bit) to be installed.

Supported software (optional)


COMPATIBLE i2 COMPANION PRODUCTS
iBase 10.1.2
i2 Analyst's Notebook Connector for Esri 10.1.1
i2 TextChart 10.1.1


SUPPORTED SOFTWARE	Analyst's Notebook 10.1.1	Analyst's Notebook 10.1.0	Analyst's Notebook 10.0.2	Analyst's Notebook 10.0.1	Analyst's Notebook 10.0.0	Analyst's Notebook 9.4.0
Microsoft Office 365 64-bit	✅	✅	✅	✅	🆕	-
Microsoft Office 2024 64-bit	✅	✅	✅	✅	🆕	-
Microsoft Office 2021 64-bit	✅	✅	✅	✅	🆕	-
Microsoft Office 2019 64-bit	✅⁶	✅	✅	✅	🆕	-
Microsoft Office 2016 64-bit	❌	❌	❌	✅	🆕	-
Microsoft Office 2019 32-bit	❌	❌	❌	❌	❌	✅
Microsoft Office 2016 32-bit	❌	❌	❌	❌	❌	✅
Microsoft Office 365 32-bit	❌	❌	❌	❌	❌	✅
Google Earth 6.2 (32-bit only)	❌	❌	❌	❌	❌	✅
Google Earth 7.1 (32-bit only)	❌	❌	❌	❌	❌	✅
Google Earth Professional 6.2 (32-bit only)	❌	❌	❌	❌	❌	✅
Google Earth Professional 7.1 (32-bit only)	❌	❌	❌	❌	❌	✅
Google Earth Professional 7.3 (32-bit only)	❌	❌	❌	❌	❌	✅
Esri ArcGIS Enterprise 11 (Portal for ArcGIS; optional, for i2 Esri Maps)⁷	✅	✅	✅	🆕	-	-
Esri ArcGIS Enterprise 10 (Portal for ArcGIS; optional, for i2 Esri Maps)⁷	✅	✅	✅	✅	✅	✅

⁶ Microsoft Office 2019 support will be deprecated in a future Analyst's Notebook release.

⁷ Specific version support is determined by Esri product lifecycle statement.

Hardware


Hardware requirements	Minimum	Recommended
Disk space	1GB for installation plus additional working space
Processor	Intel or AMD processor with 64-bit and SSE 4.2 support
	2GHz or faster
Memory	8GB	16GB
Display	1280 x 768	1920 x 1080

Language support

i2 products are tested on a number of various regional variations of operating systems. In addition they are translated into a number of different languages.

Operating system language support

i2 supports this product on the following regional versions of the supported operating systems:


Language Group/Language	Language Collection	Support Status
Western Europe and USA	Basic	✅
Central Europe	Basic	✅
Baltic	Basic	✅
Cyrillic	Basic	✅
Turkic	Basic	✅
Arabic	Complex Script	✅
Japanese	East Asian	✅
Korean	East Asian	✅
Traditional Chinese	East Asian	✅
Simplified Chinese	East Asian	✅
Thai	Complex Script	❌
Vietnamese	Complex Script	❌
Greek	Basic	❌
Hebrew	Complex Script	❌
Indic	Complex Script	❌
Georgian	Complex Script	❌
Armenian	Complex Script	❌
Dhivehi	Complex Script	❌
Galician	Complex Script	❌
Gujarati	Complex Script	❌
Kannada	Complex Script	❌
Kyrgyz	Complex Script	❌
Mongolian (Cyrillic)	Complex Script	❌
Punjabi	Complex Script	❌
Syriac	Complex Script	❌
Telugu	Complex Script	❌

Data support

i2 products support unicode data.

Translations

The following languages are supported:


Translations	Analyst's Notebook 10.1.1
Arabic	✅
Brazilian Portuguese	✅
Bulgarian ⁸	✅
Czech	✅
English	✅
French	✅
German	✅
Hungarian	✅
Italian	✅
Japanese	✅
Korean	✅
Polish	✅
Russian ⁸	✅
Simplified Chinese	✅
Slovak	✅
Spanish	✅
Traditional Chinese	✅
Turkish	✅
Ukrainian ⁸	✅

⁸ Help available in English only.
